Lithium Polymer Battery Akyga AKY0654 LP654060 Li-Po 3.7V / 1950mAh PCM JST 2.54 2Pin Conn 150mm
- Product code AKY0654
- Part numberLP654060
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typePolymer Li-Ion Battery
- Rated voltage3.7 V
- Battery capacity1950 mAh
- Cell TypeLi-Po
- ProtectionPCM
- Leads wires, connector+socket
- Thickness6.5 mm
- Width40 mm
- Height60 mm
- Connector type2,54 JST, 2 pins
- Connector part numberJST SYP-02T-1
- Cable length150 mm
- PackageUniBag
- Product size (L x W x H)40 x 60 x 6.5 mm
- Net weight34 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5903622760022
- Warranty24 months

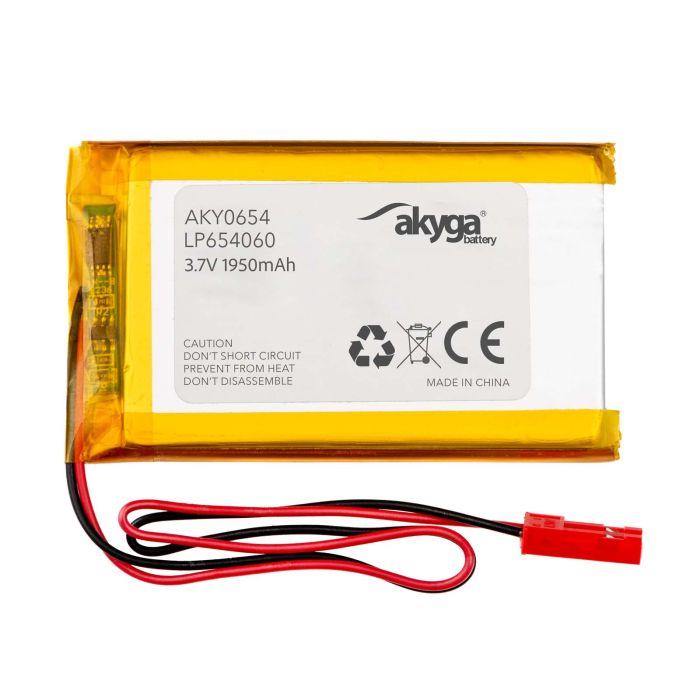

The Akyga® AKY0654 LP654060 battery is a flat 3.7V Li-Po battery, designed for mobile devices and electronic projects requiring a stable power supply. This compact 3.7V 1950mAh Li-Po battery delivers high current output and reliable performance in a variety of conditions. Thanks to its advanced technology and built-in PCM circuit protecting against overcharging, over-discharging and overloading, the cell remains safe for everyday use.
The LP654060 lithium-polymer battery is equipped with 150 mm leads terminated with a JST 2-pin connector, which significantly simplifies integration with devices. In practice, this means quick connection of electronic modules, prototype boards or controllers. High-quality wires ensure stable power delivery, and the 3.7V Li-Po battery itself guarantees the correct voltage for a wide range of projects. As a result, the cell can serve as a reliable power source for both consumer electronics and DIY constructions.
Specifications and applications of the 3.7V 1950mAh Li-Po battery
The 3.7V 1950mAh Li-Po battery from Akyga® Battery stands out for its favourable capacity-to-size ratio. Standard specifications for the LP654060 model include a nominal voltage of 3.7 V, as well as dimensions of approximately 60 × 40 × 6.5 mm and a weight of approximately 34 g. This design makes the Li-Po battery widely used in portable devices. Its width and slim profile allow the cell to be easily fitted into the housings of mobile electronics.
This type of battery offers a low self-discharge rate and no memory effect. As a result, it can be recharged repeatedly without any loss of performance. Additionally, the built-in PCM system protects the 3.7V Li-Po battery against short circuits, overcharging and overcurrent. In practice, this means greater durability and stable operation in various conditions, even when the ambient temperature changes.
Its high performance means that the 3.7V 1950mAh Li-Po battery is frequently used in devices such as digital cameras, Bluetooth speakers, GPS systems and RC models. In many electronic projects, cables with JST connectors allow the battery to be quickly connected to control modules. This is precisely why Li-Po batteries of this type are a popular choice amongst electronics designers, mobile device manufacturers and hobbyists creating their own projects.
