Li-Ion Battery Pack Akyga AKY2832 PCM INR18650-32M-1S2P WC2S 3.6V / 6400mAh Cvilux 2-Pin
- Product code AKY2832
- Part numberINR18650-32M-1S2P WC2S
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeLithium-Ion Battery
- Outlet cord length175 mm
- Rated voltage3.6 V
- Battery capacity6400 mAh
- Cell Type1S2P
- Battery Marking18650
- ProtectionTAK - PCM
- Leads Cvilux CP-01102010
- Thickness21 mm
- Width37 mm
- Height68 mm
- PackageUniBag
- Product size (L x W x H)68 x 37 x 21 mm
- Net weight95 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5903622760671
- Warranty24 months

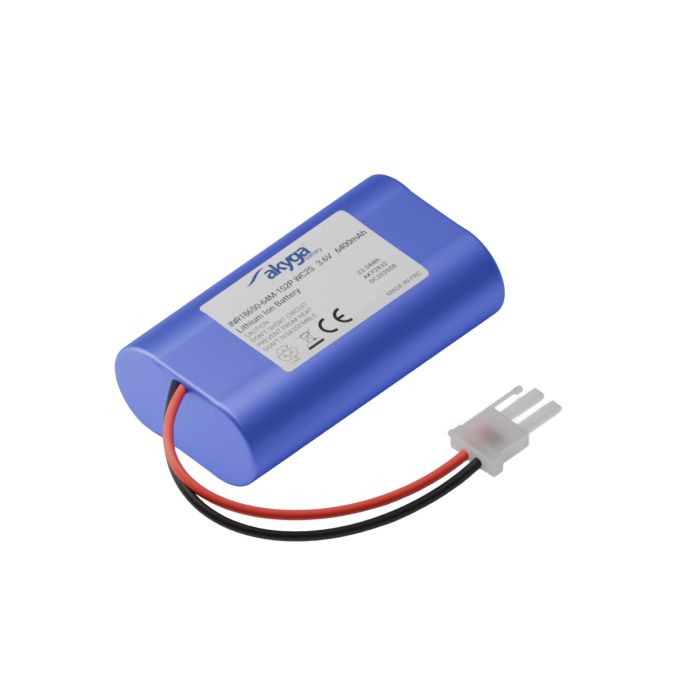

The Akyga® AKY2832 is an 18650 battery pack in a 1S2P configuration, comprising two Li-Ion INR18650 cells connected in parallel. This design maintains a nominal voltage of 3.6 V whilst increasing the total capacity of the battery pack to 6400 mAh. As a result, the pack is ideal as a power source for various types of electronic devices requiring stable operation and high capacity.
1S2P configuration – greater battery capacity
The pack utilises two Li-Ion cells connected in parallel. This means that the pack’s voltage remains the same as that of a single battery, whilst their capacities add together. This design allows for longer operating times for devices.
Built-in PCM protection
The Li-Ion pack is equipped with a PCM (Power Management Circuit), which enhances the safety of battery use. The protection system safeguards the cells against, amongst other things, overcharging, over-discharging and short-circuiting. This helps to minimise the risk of cell damage during everyday use and charging.
Cvilux 2-pin connector
The pack features wires terminated with a Cvilux CP-01102010 connector. This facilitates connecting the battery to compatible devices and replacing a worn-out pack. Before installation, check the compatibility of the connector, the polarity of the wires, the voltage and the dimensions of the battery.
Where can the AKY2832 18650 battery pack be used?
18650 Li-Ion cells are commonly used in consumer electronics, power banks and devices requiring high current output. The Akyga® AKY2832 pack can be used as a replacement battery pack, provided that the electrical parameters, connector and dimensions are compatible with the target device.
