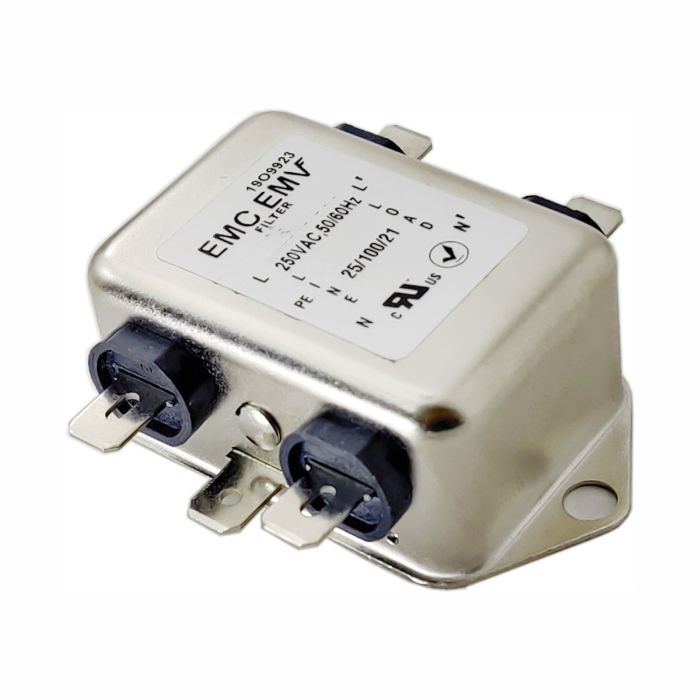

Single phase EMI filter Akyga EMC EMV EN2030-6-F 6A 120-250VAC 50/60Hz
- Product code EN2030-6-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current6 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)71 x 68 x 22 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138620
Description
The EN2030-6-F EMI filter is a compact yet highly effective solution for the elimination of electromagnetic interference in equipment operating at up to 6 A. It is ideal for automation systems, power supplies, consumer electronics and laboratory equipment, wherever the purity of the supply voltage has a direct impact on the reliability and precision of operation.
Fitted with 6.3mm connectors, it enables quick and secure installation, while the robust metal housing provides effective interference shielding and resistance to harsh operating conditions. The EN2030-6-F combines high functionality, durability and safety - ideal for professional applications requiring a stable power supply.
