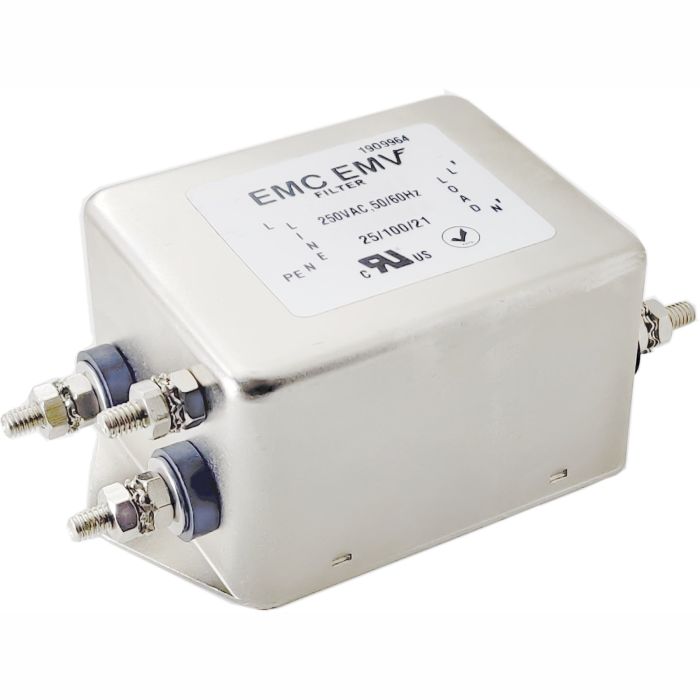

Single phase EMI filter Akyga EMC EMV EN2030-20-S 20A 120-250VAC 50/60Hz
- Product code EN2030-20-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current20 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)95 x 52 x 38 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138675
Description
The EN2030-20-S EMI filter is an indispensable component for systems that require effective interference filtering while operating at high current - up to 20 A. It is designed for industrial environments, automation, advanced power equipment and installations requiring a reliable and clean power supply.
With its M4 screw connectors, it provides a stable, durable connection and facilitates installation even in more difficult installation environments. The metal housing protects against mechanical damage and effectively suppresses electromagnetic interference. The EN2030-20-S EMI interference filter will prove its worth wherever robustness, durability and uncompromising performance quality are important.
