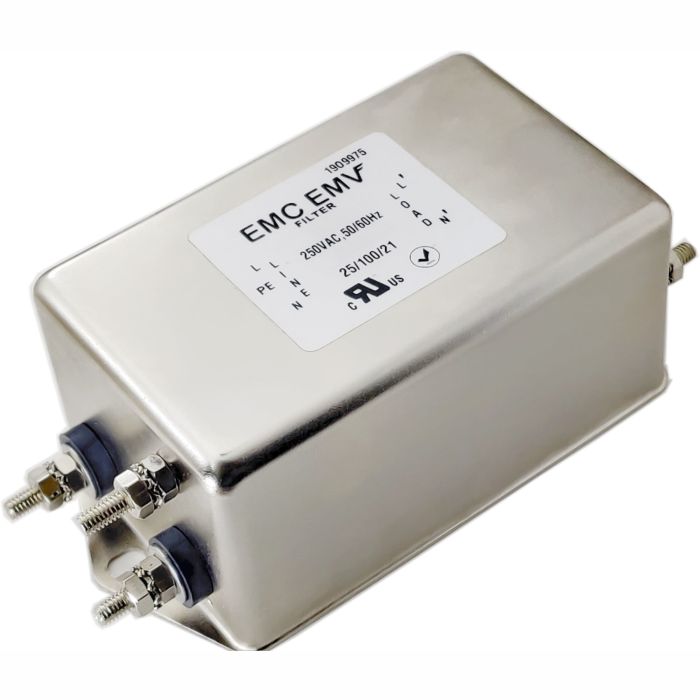

Single phase EMI filter Akyga EMC EMV EN2060-20-S 20A 120-250VAC 50/60Hz
- Product code EN2060-20-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current20 A
- LeadsM4 connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)124 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138767
Description
The EN2060-20-S EMI filter is a robust and effective solution for eliminating electromagnetic interference in power systems operating up to 20 A. It is ideal for industrial environments, automation, server installations and anywhere where voltage stability and equipment protection are crucial.
Thanks to its M4 screw connectors, it provides a durable and secure connection, even when using cables with a larger cross-section. The metal housing guarantees resistance to mechanical damage and effective shielding against external interference. The EN2060-20-S is a reliable industrial-grade interference filter - ideal for applications requiring uncompromising power quality.
