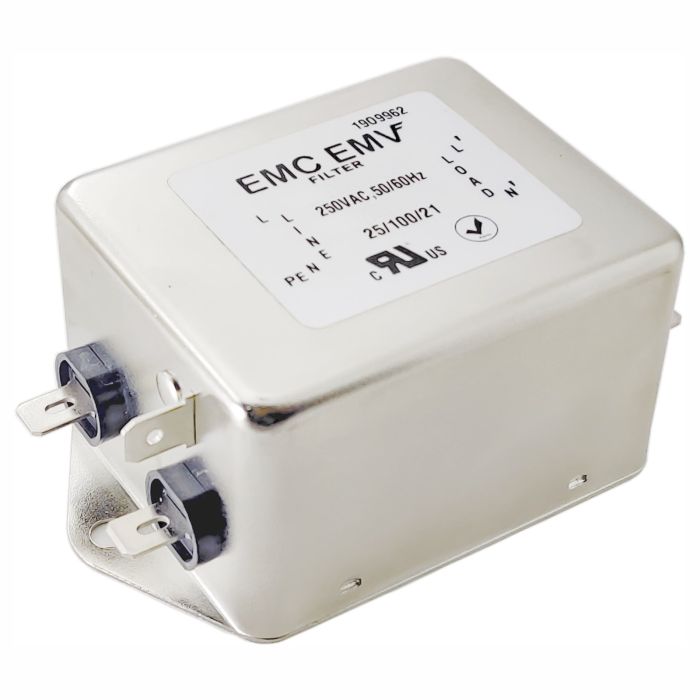

Single phase EMI filter Akyga EMC EMV EN2080-12-F 12A 120-250VAC 50/60Hz
- Product code EN2080-12-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current12 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)153 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138910
Description
The EN2080-12-F EMI filter is an efficient and reliable component designed to protect electronic devices operating up to 12 A from electromagnetic interference. Thanks to its universal design, it is ideal for power systems, industrial automation, audio/video installations and sensitive electronic devices where voltage stability is crucial.
The connectors ensure easy and quick installation and the robust metal housing provides resistance to external factors. The EN2080-12-F interference filter combines reliability, durability and compact form, offering high performance even in demanding applications.
