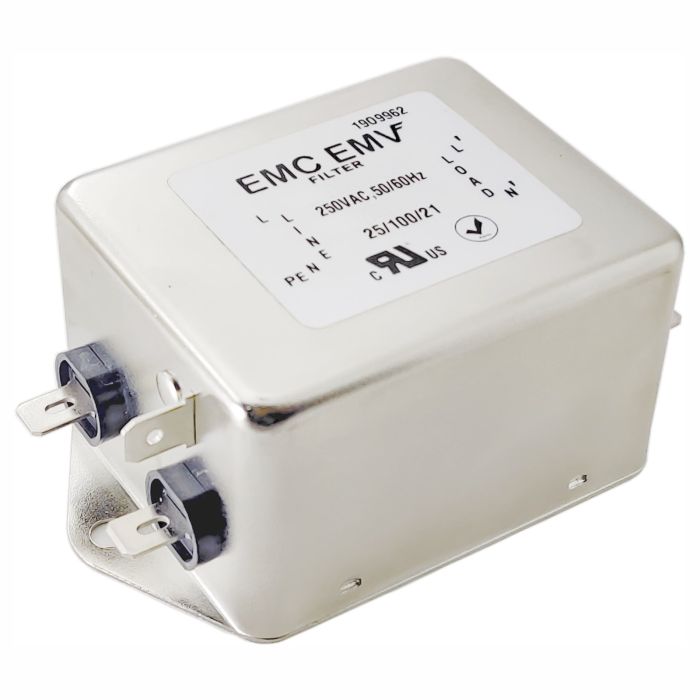

Single phase EMI filter Akyga EMC EMV EN2090-12-F 12A 120-250VAC 50/60Hz
- Product code EN2090-12-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current12 A
- Leads6.3 mm connectors
- Leakage current1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)115 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139009
Description
The EN2090-12-F EMI filter is a powerful solution designed to protect equipment supplied with up to 12 A from electromagnetic interference. Its design makes it ideal for automation systems, industrial installations, medical devices and advanced audio and video systems where voltage stability is crucial.
Equipped with 6.3 mm connectors, it ensures fast and secure installation, while the robust metal housing effectively shields external interference. The higher leakage current, characteristic of higher-power devices, ensures effective interference suppression while maintaining reliable operation even in harsh environments.
