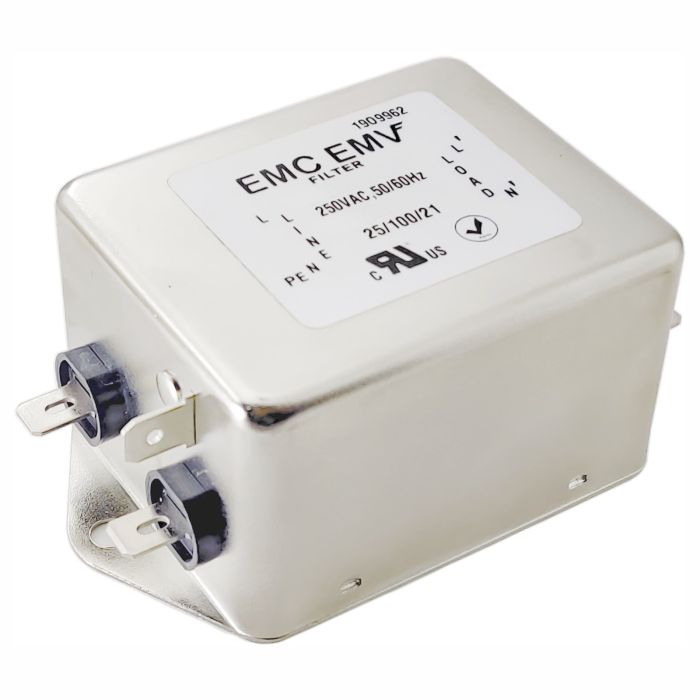

Single phase EMI filter Akyga EMC EMV EN2090-16-F 16A 120-250VAC 50/60Hz
- Product code EN2090-16-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current16 A
- Leads6.3 mm connectors
- Leakage current1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)115 x 57 x 45 mm
- Net weight521 g
- Gross weight566 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139016
Description
The EN2090-16-F EMI mains filter is designed to effectively protect electrical and electronic equipment from electromagnetic interference (EMI). Thanks to its ability to handle a maximum operating current of 16 A, it is able to meet the requirements of high-power devices while guaranteeing effective interference filtering. Furthermore, the EMI suppression filter leads, are equipped with 6.3 mm diameter connectors. In this way, it is possible to connect the filter securely and quickly to various types of equipment.
