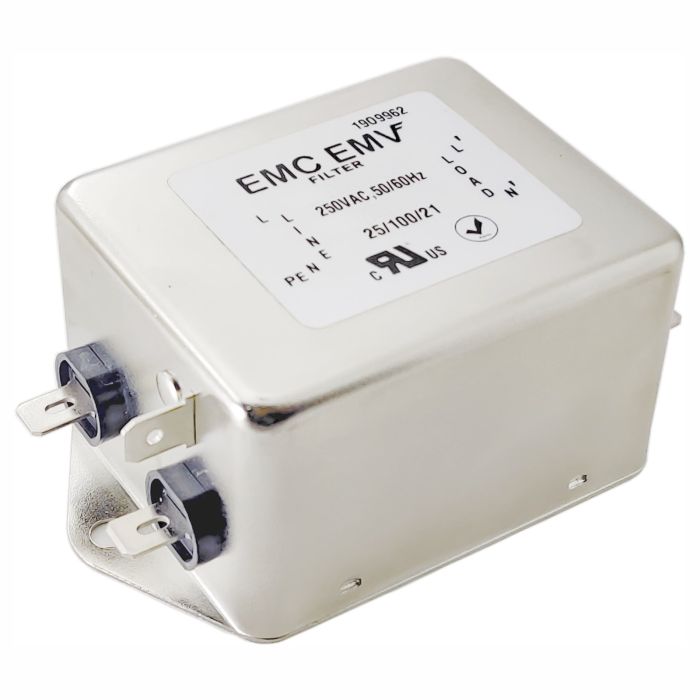

Single phase EMI filter Akyga EMC EMV EN2090B-16-F 16A 120-250VAC 50/60Hz
- Product code EN2090B-16-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current16 A
- Leads6.3 mm connectors
- Leakage current1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)115 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139054
The EN2090B-16-F EMI filter is a high-performance anti-interference solution designed to protect equipment operating at up to 16 A. Thanks to its design, it excels at eliminating electromagnetic interference in automation systems, industrial equipment, power supplies and audio/video installations, ensuring reliable and stable operation even in demanding conditions.
The filter is equipped with 6.3 mm connectors for fast and secure installation, and the metal housing guarantees durability and effective interference shielding. The increased leakage current demonstrates its high efficiency in suppressing noise in more heavily loaded applications. The EN2090B-16-F interference filter is a professional tool for ensuring power purity in critical electronics.
