Passive ATX Power Supply 600W Akyga AK-FL-600 Full-Modular PCI-E 6+2 pin 4x SATA APFC 80+ Fanless
- Product code AK-FL-600
- Product typeComputer power supply
- FormatATX 2.31
- SeriesFanless
- Supply voltage230 V
- Power consumption5 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail18 A
- Current on the +5V rail 18 A
- Maximum load on +3.3V and +5V line75 W
- Current on the +12V rail50 A
- Maximum load on 12V line512 W
- Maximum power600 W
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 1 pc
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplyYes
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPYes
- Power supply connectorIEC C14
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature0 - 40 °C
- PackageEcoBox
- Product size (L x W x H)85 x 150 x 160 mm
- Net weight1408 g
- Gross weight1689 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139313
- Warranty24 months

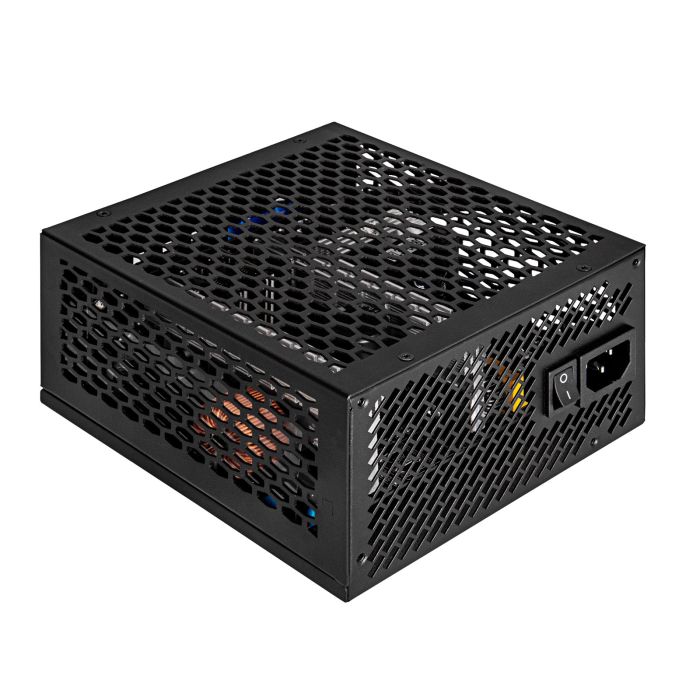

The Akyga® AK-FL-600 modular ATX power supply is the perfect choice for those looking for a quiet PSU. It is distinguished by its fanless design. Instead, the power supply is passively cooled by a set of heatsinks that dissipate excess heat. The applied cooling ensures it operates in complete silence, providing the user with a much more comfortable working experience compared to traditional ATX power supplies.
The AK-FL-600 power supply delivers 600 watts of power, which is optimal for most PCs. It will easily provide a stable power for a variety of office and home computer configurations. Its versatility is further emphasised by the variety of included connectors. Available are: P1 (20+4-pin) for motherboards, P8 (4+4-pin) for CPUs, PCI-e 4+4-pin for graphics cards, 4 SATA connectors and 2 Molex connectors for older components.
In addition, the PSU is equipped with a modular cable set. This means it allows to easy and precise cable matching to a particular computer system, leading to greater flexibility in cable management. This is especially significant for those who appreciate good cable organisation in the case. In addition, the ATX power supply AK-FL-600 is characterised by its high energy efficiency. As a result, it meets the requirements of the 80 PLUS certification and guarantees users lower energy consumption.
