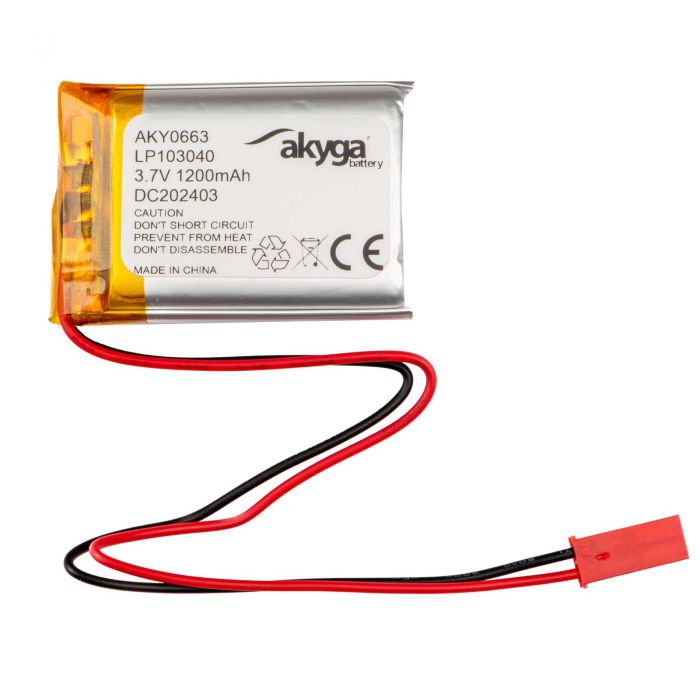

Lithium Polymer Battery Akyga AKY0663 LP103040 Li-Po 3.7V/1200mAh PCM JST 2.54 2-Pin Connector 150mm

  • Product code AKY0663
  • Part numberLP103040
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity1200 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness10 mm
  • Width30 mm
  • Height40 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length150 mm
  • PackageUniBag
  • Product size (L x W x H)40 x 30 x 10 mm
  • Net weight24 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243537
  • Warranty24 months
Description

Akyga Battery LP103040 lithium polymer battery, you get a proven and safe solution. The AKY0663 battery has a high quality protection system that protects the battery against overcharging, excessive discharge and short circuit. It has a capacity of 1200 mAh and a nominal voltage of 3.7 V. To facilitate the installation of the battery two cables with a length of 150 mm, terminated with a 2.54 JST 2 pin connector, are derived from it.

The battery complies with the certificates: MSDS, CE, RoHS.

Before using lithium-polymer batteries, familiarize yourself with the rules of use. Incorrect use may lead to their damage.
