Li-Ion Battery Pack Akyga AKY2836 PCM INR18650-32M-3S1P WC2S 10.8V / 3200mAh Cvilux 2-Pin
- Product code AKY2836
- Part numberINR18650-32M-3S2P WC2S
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeLithium-Ion Battery
- Outlet cord length175 mm
- Rated voltage10.8 V
- Battery capacity3200 mAh
- Cell Type3S1P
- Battery Marking18650
- ProtectionTAK - PCM
- Leads Cvilux CP-01102010
- Thickness19 mm
- Width55.5 mm
- Height69.5 mm
- PackageUniBag
- Product size (L x W x H)69.5 x 55.5 x 19 mm
- Net weight150 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5903622760664
- Warranty24 months

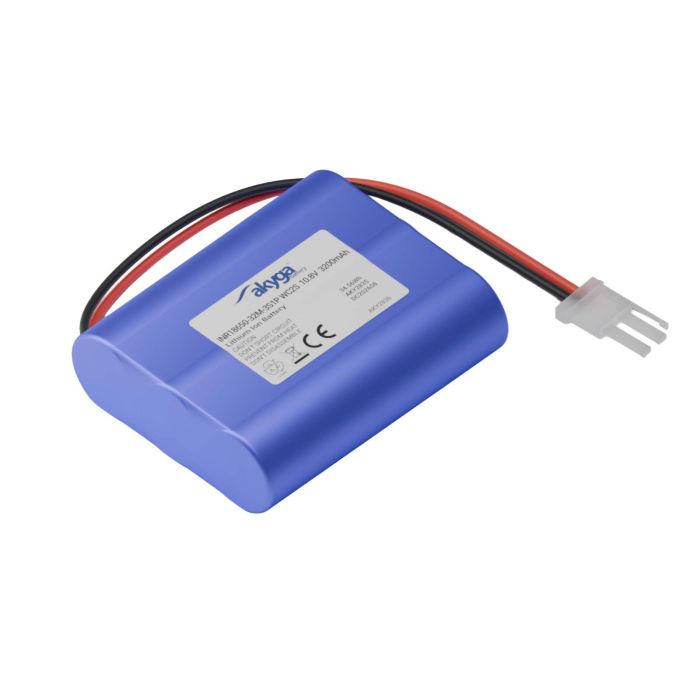

10.8 V Li-Ion battery pack in a flat casing
The Akyga® AKY2836 Li-Ion battery pack consists of three INR18650 cells arranged side by side and enclosed in a protective sleeve. The flat design has a low profile, making it easier to fit into devices with a wide but shallow battery compartment. The pack offers a rated voltage of 10.8 V and a capacity of 3200 mAh.
Li-Ion 3S1P battery pack
The Akyga® AKY2836 Li-Ion battery pack consists of three INR18650 cells connected in series. This configuration provides a rated voltage of 10.8 V, whilst the battery capacity remains at 3200 mAh. The product is ideal for powering drones, quadcopters, automation systems and remote-controlled models.
The charging and discharging voltage range of the pack is from 8.1 to 12.9 V. During standard charging, the final voltage reaches 12.6 V, whilst with fast charging at a current of 0.5C it may reach 12.9 V. Before purchasing, you should compare the dimensions, voltage, connector polarity and discharge current with the device’s specifications. This is particularly important for power tools, which may require a higher current output.
PCM protection and fast charging
The built-in PCM circuit protects the battery pack against overcharging, over-discharging, overloading and short circuits. These safeguards enhance the product’s safety but do not replace a dedicated charger. A 12.6 V charger is required for standard charging of the AKY2836 battery pack. For fast charging, the charger should support a voltage of 12.9 V and a current of up to 1.6 A, i.e. 0.5C.
Li-Ion cell lifespan
The AKY2836 Li-Ion battery guarantees a minimum of 300 full charge cycles, retaining over 80 per cent of its initial capacity after this period. The actual operating time and service life of the battery depend on the load, charging method and storage conditions. Li-Ion cells are thermally stable during normal operation; however, excessively high or low temperatures may accelerate their wear and tear.
175 mm cable with Cvilux connector
The Li-Ion battery pack has a 175 mm cable fitted with a 2-pin Cvilux connector. Before installing the product, check the polarity, compartment dimensions, voltage and required current. Packs that look similar are not always interchangeable, so ensuring that all parameters match is crucial for the correct operation of the devices.
