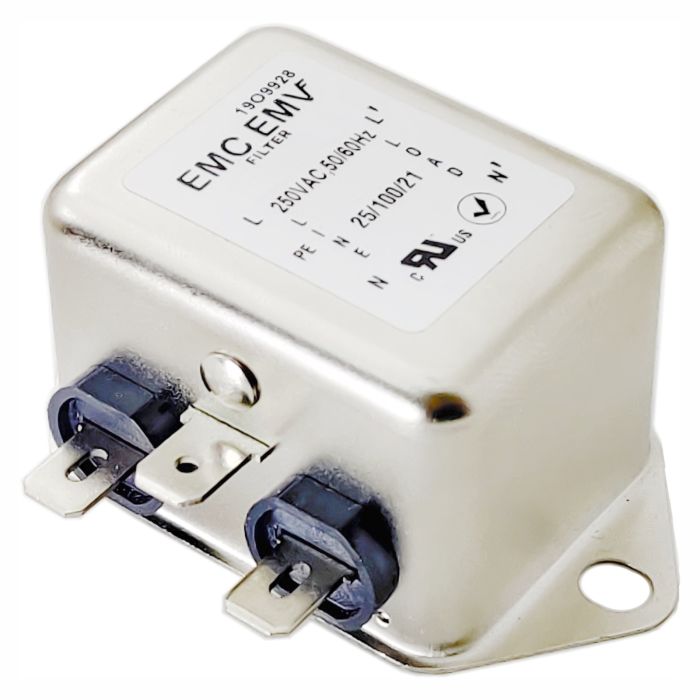

Single phase EMI filter Akyga EMC EMV EN2030-12-F 12A 120-250VAC 50/60Hz
- Product code EN2030-12-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current12 A
- Leads6.3 mm connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)86 x 52 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138644
Description
The EN2030-12-F EMI filter is a robust electromagnetic protection element for equipment requiring a stable power supply at higher current loads. Supporting up to 12 A, it is ideal for industrial equipment, modern automation systems or high-performance audio/video installations. It is designed to effectively suppress interference both emitted by the device and that arriving from outside - guaranteeing signal purity and operational reliability.
The 6.3 mm connectors ensure convenient installation and the durable metal housing protects the filter in industrial and technical environments. The higher leakage current at this power class is a compromise that allows high filtering efficiency to be achieved without sacrificing performance.
