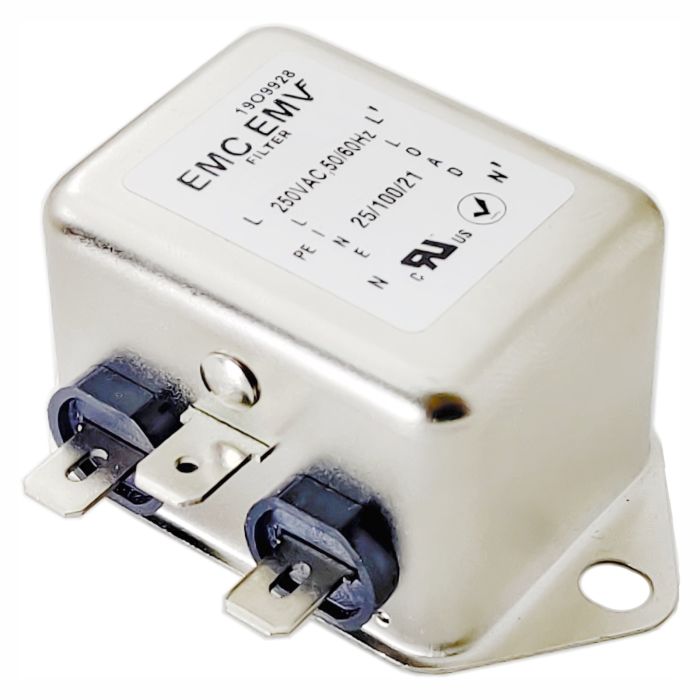

Single phase EMI filter Akyga EMC EMV EN2020-12-F 12A 120-250VAC 50/60Hz
- Product code EN2020-12-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current12 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)61 x 56 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139061
Description
The EN2020-12-F EMI filter is an effective and reliable solution for the protection of electronic equipment against electromagnetic interference, designed for up to 12 A. It is ideal for industrial automation, power supplies, lighting systems and modern installations where voltage stability is critical for proper operation.
Fitted with practical 6.3 mm connectors, the filter allows for quick installation and a secure connection. The metal housing provides durability and effective shielding, protecting the circuit from external interference. The EN2020-12-F interference filter is an excellent choice for those who want reliable filtering while maintaining a compact form factor and versatile application.
